Wall Mounted Digital Signage Display
Wall Mounted Digital Signage for Retail, Hospitality and Public Information

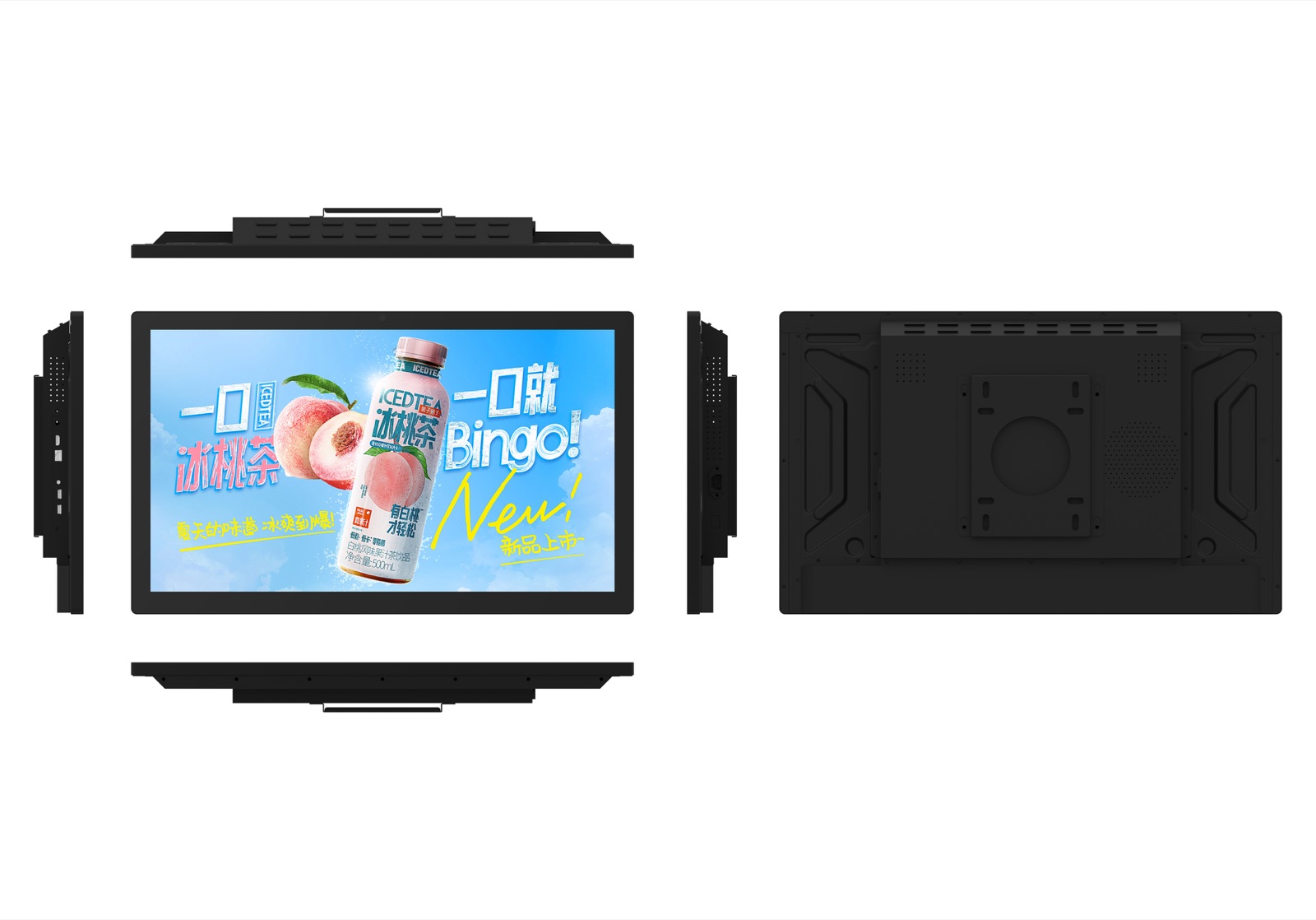

This wall mounted digital signage display is available in 32-inch, 43-inch and 55-inch sizes. It supports landscape or portrait installation and can be configured as a non-touch Android signage screen, an Android PCAP touch display, or a Windows PCAP touch display. The slim aluminum-alloy frame and black enclosure are designed for wall-mounted information, advertising, wayfinding, menu, showroom and queue-management applications.
Android configurations support scheduled playback, split-screen video, scrolling text, USB content import and network-based content updates. An optional information publishing system can be used to create, publish, manage and update programs remotely. A 5 MP or 8 MP built-in camera is also available as an option.
Choose the Right Configuration
| Configuration | Operating Platform | Touch | Best Suited For |
|---|---|---|---|
| Android Non-Touch | Android 12 | No | Advertising playback, menus, wayfinding, announcements and scheduled information display |
| Android PCAP Touch | Android 12 | 10-point capacitive touch | Interactive directories, product information, self-service guidance and touch-enabled content |
| Windows PCAP Touch | Windows 10 or Windows 11 | 10-point capacitive touch | Windows applications, interactive kiosks, business software and custom PC-based deployments |
Display Specifications
| Specification | 32 Inch | 43 Inch | 55 Inch |
|---|---|---|---|
| Android Resolution | 1920 x 1080 | 3840 x 2160 | 3840 x 2160 |
| Windows Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16:9 | ||
| Brightness | 250 cd/m2 | ||
| Contrast Ratio | At least 1200:1 typical | ||
| Viewing Angle | 178 degrees horizontal / 178 degrees vertical | ||
| Refresh Rate | 60 Hz | ||
| Backlight | ELED, 50,000-hour minimum rated life | ||
| Active Display Area | 698.4 x 392.85 mm | 941.184 x 529.416 mm | 1209.6 x 680.4 mm |
| Overall Dimensions (W x D x H) | 758.18 x 61.45 x 456.85 mm | 1006 x 61.45 x 598.2 mm | 1285.5 x 61.45 x 756.3 mm |
Android Digital Signage Configuration
- Processor: GK6760V100, eight-core A55 up to 1.5 GHz
- Graphics: G52 quad-core GPU
- Memory: 2 GB RAM, optional 4 GB
- Storage: 32 GB eMMC
- Network: 10/100M Ethernet and 2.4 GHz Wi-Fi
- Connections: HDMI input, RJ45, 3.5 mm audio output, one USB 2.0 and one USB 3.0 port
- Audio: Two 5 W speakers
- Optional camera: 5 MP or 8 MP built-in camera
Windows Touch Configuration
- Processor: Low-power 8th generation Intel Core i5
- Graphics: Intel UHD Graphics 620
- Memory: 4 GB or 8 GB DDR4
- Storage: 128 GB, 256 GB or 512 GB SSD
- Operating system: Windows 10 or Windows 11, trial or OEM version
- Network: 10/100/1000M Ethernet and dual-band 2.4/5 GHz Wi-Fi
- Connections: HDMI output, VGA output, RJ45, four USB 3.0 ports, 3.5 mm audio output and microphone input
- Optional camera: 5 MP or 8 MP built-in camera
PCAP Touch Performance
The touch-enabled versions use 10-point projected capacitive touch. Touch accuracy is rated at +/-2 mm across the central 90% of the touch area. The display supports finger input or a capacitive stylus with a contact diameter of at least 6 mm. A high-transmission 3 mm tempered glass layer protects the front surface.
Installation, Power and Operating Environment
| Item | Details |
|---|---|
| Mounting Orientation | Landscape or portrait wall mounting |
| Input Power | 100-240 V AC, 50/60 Hz |
| Standby Power | 0.5 W or less |
| Android Maximum Power | 32 inch: 40 W or less; 43 inch: 50 W or less; 55 inch: 75 W or less |
| Windows Maximum Power | 32 inch: 70 W or less; 43 inch: 80 W or less; 55 inch: 105 W or less |
| Operating Temperature | 0 to 40 degrees C |
| Storage Temperature | -20 to 60 degrees C |
| Operating and Storage Humidity | 10% to 90%, non-condensing |
| Operating Altitude | Below 5,000 m |
| Enclosure Color | Black |
Typical Applications
- Retail promotions and product information
- Restaurant menu boards and promotional screens
- Hotel lobby information and event schedules
- Library notices and digital directories
- Shopping mall advertising and wayfinding
- Showroom product presentations
- Queue calling and public service information
- Corporate announcements and reception displays
OEM and Project Options
For OEM, distributor and project orders, the display can be selected by size, operating platform, memory, storage, touch capability, camera requirement and installation orientation. Content publishing software is optional. Final configuration and specifications should be confirmed in the sales contract because product details may be updated for project requirements.
Frequently Asked Questions
Can the display be installed vertically?
Yes. The enclosure supports both landscape and portrait installation. Confirm the required orientation before production so the content and mounting plan can be prepared correctly.
Should I choose Android or Windows?
Choose Android for scheduled signage playback, USB or network content updates and straightforward remote publishing. Choose Windows when the project requires Windows applications, PC software or custom interactive programs.
Is touch available?
Yes. Ten-point PCAP touch is available with both Android and Windows configurations. A non-touch Android version is also available for standard advertising and information playback.
How can content be updated?
Android models support USB import and network-based content management. An optional information publishing system supports remote program creation, publishing, management and real-time updates.
What information is needed for a quotation?
Please provide the screen size, order quantity, Android or Windows preference, touch requirement, installation orientation, camera requirement, destination market and any content management needs.
